Intermercato's line up of heavy duty rigid mount rotators are sourced from factories located in Sweden, Austria and Germany depending on the application.

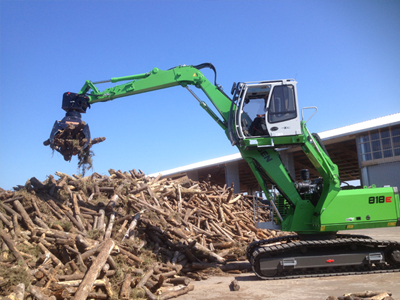

A rigid mount rotator allows the operator to rotate the grab into exactly the right position for loading beams onto trucks, grabbing upright trees, stacking, positioning rocks, fence post work, sorting materials quickly at waste disposal sites and more.
The rotator and grab must be extremely strong when rigid mounted to cope with the sheer and thrust forces of the excavator. A pendulum rotator and grab is cheaper in comparison as the swinging action takes pressure off the unit.
Rigid mount rotators suits machines from 2-40 tonne operating weight.

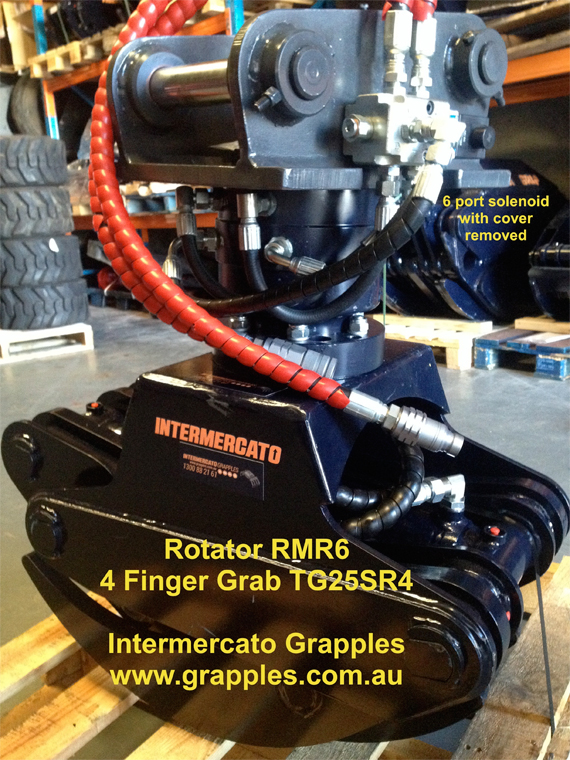

Plumbing options: mount 6 port solenoid with switch wired back into the cabin, two sets of hammer piping or replumbing the pusher bar.
RMR 12
WD 7
XR 400
Catalogue (PDFs)
Rigid Mount Rotators

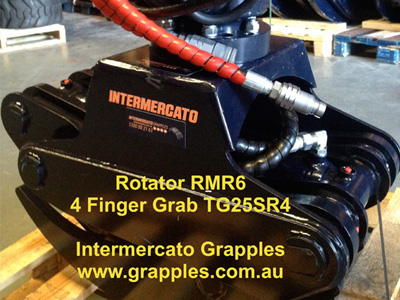

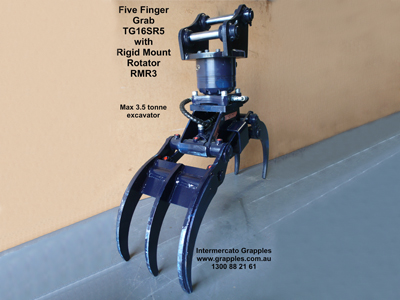

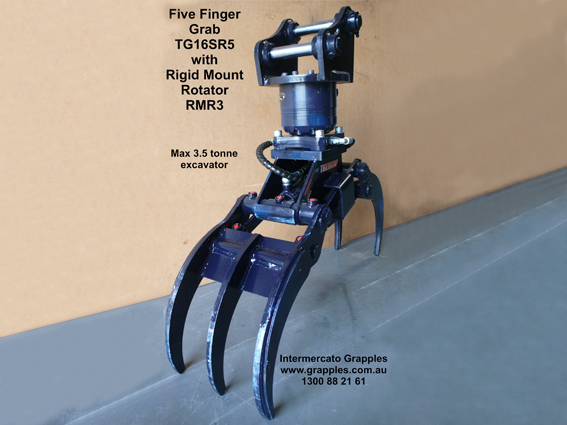

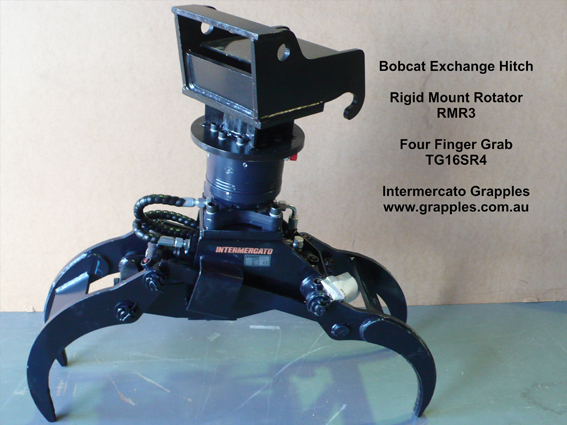

Intermercato Heavy Duty Gerotor Rotators - RMR series, suits excavators of 2-16 tonne operating weight.
RMR series use G-rotor technology to create a compact, high side load withstanding rotator. The axial and radial loading is due to the tapered roller bearing of the dual mounted, forged drive shaft. Designed for high operating pressures of 320 bar.
Fast operating speeds but not designed to hold vertical items steady (such as poles). See geared worm drive rotators for holding items steady in any plane.
RMR are also used as positioning rotators in special applications when pendulum mounted.

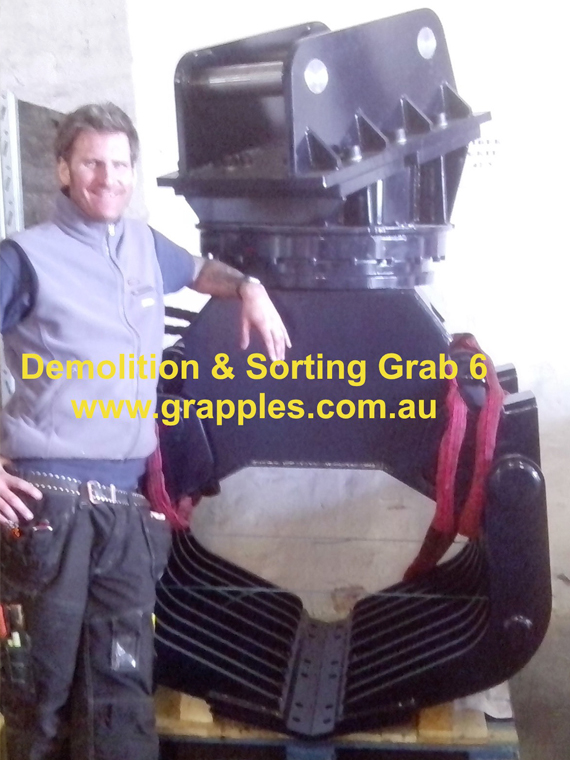

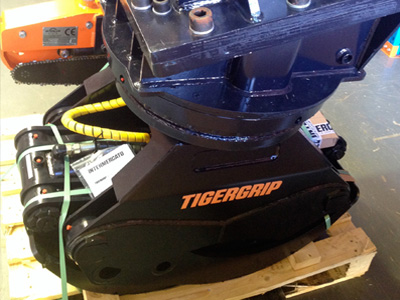

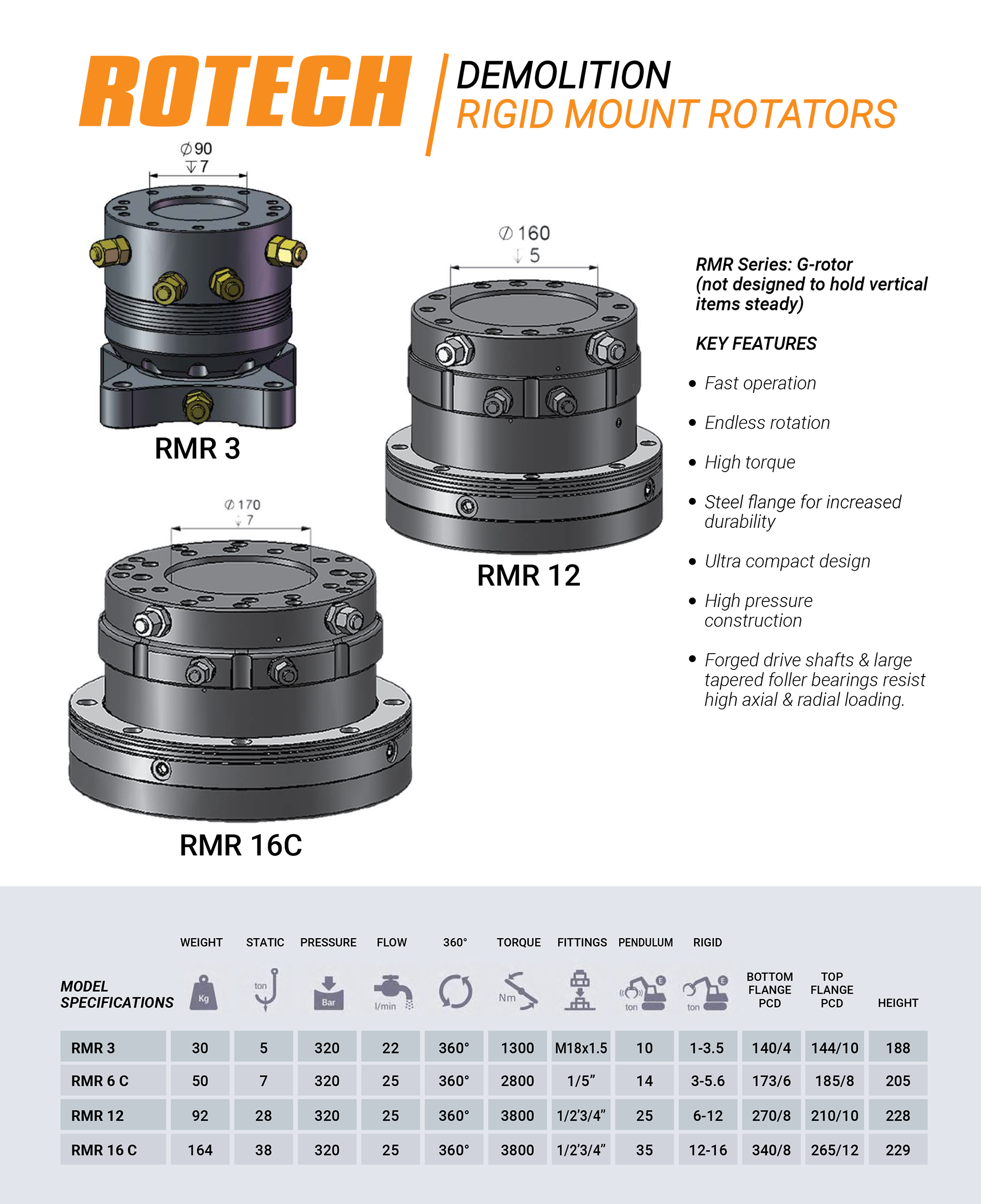

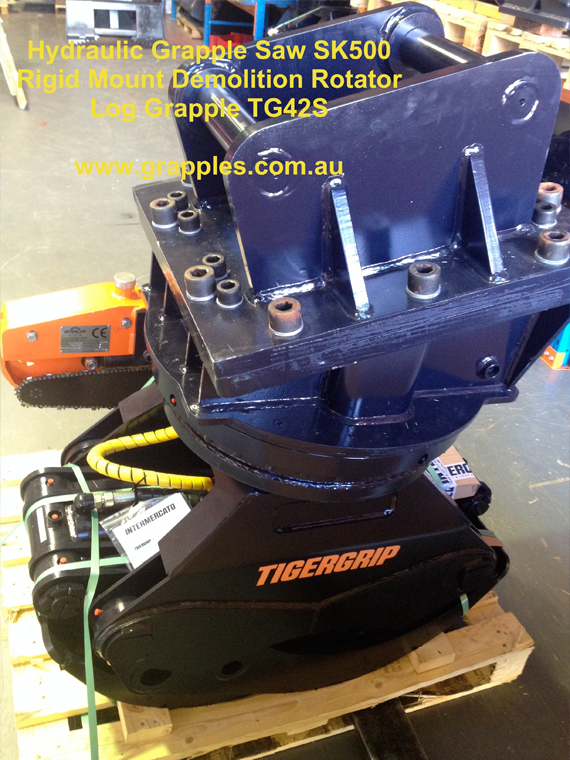

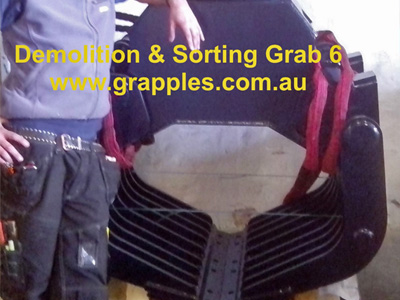

Demolition Rigid Mount Rotators
Download Full Specifications for Demolition Rigid Mount Rotators (PDF)

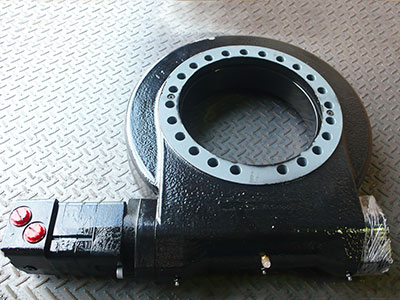

Worm Drive

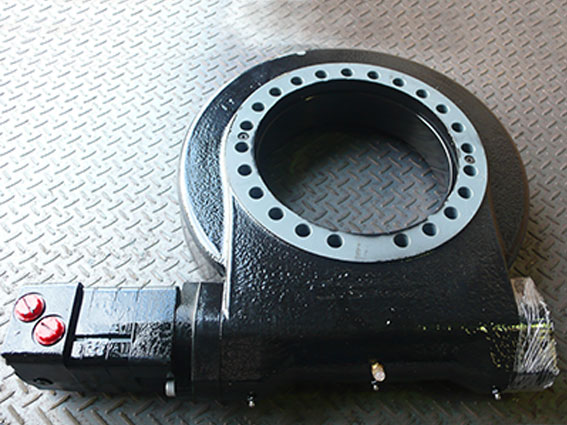

Worm Drive Rotators - WD series, suit excavators of 1-30 tonne in operating weight.

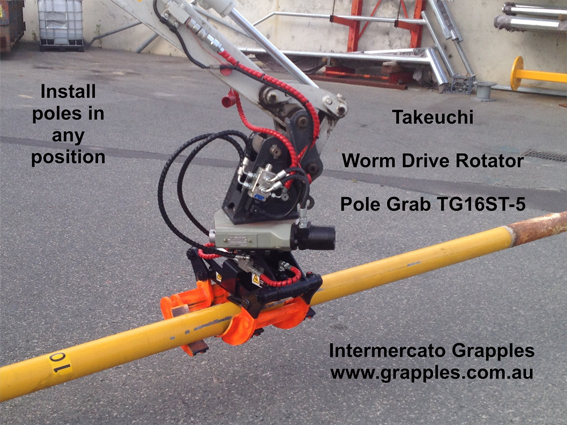

Worm drive rotators are DESIGNED TO HOLD LOADS AT ANY ANGLE. For positioning vertical poles, using a shear or chainsaw or just where perfect holding of the load is required. The compromise is speed, however the load can be positioned extremely accurately.
All worm drives have been balanced in torque and speed to give you a LONG operating life. The new NSL – non self locking is designed for further protect the worm drive in harsh conditions. The rotators low profile keeps the load centre in tight, and massive torque is developed from the worm gears. Strong steel gears are used in the WD series, perfect in forestry applications where shifting forces are constantly occurring.
WD - Wormdrive Rigid Mount Rotators
Download Full Specifications for WD - Wormdrive Rigid Mount Rotators (PDF)
XR Series

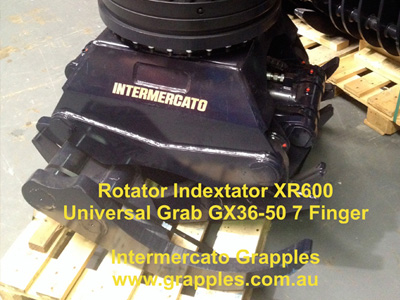

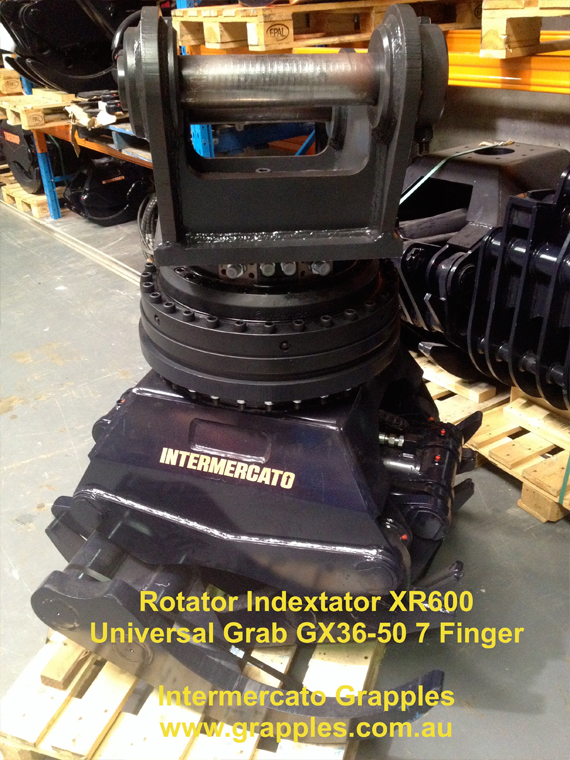

Indexator Super Heavy Duty Vane Rotators - XR series, suits excavators of 10-35 tonne operating weight.
XR series are a low maintenance rotator based on proven vane motor technology, suitable for many rigid mount applications.
Very compact low profile to decrease load centre for improved lifting capacity, robust with strong bearings designed to handle heavy dynamic and static loads, positive and negative forces (pull/push) as well as side thrust.
With a hanger XR series can be used as a pendulum mount, especially for extreme applications including penciling in remote forest locations.
Indexator XR 300 - 600 H.D. Vane Rotators
Download Full Specifications for Indexator XR 400 - 600 H.D. Vane Rotators (PDF)

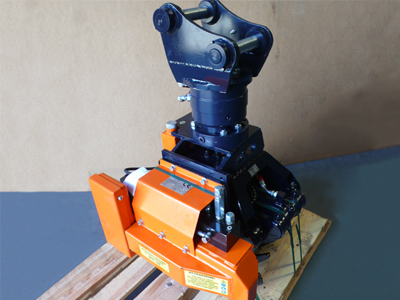

Six Port Forestry Rotators

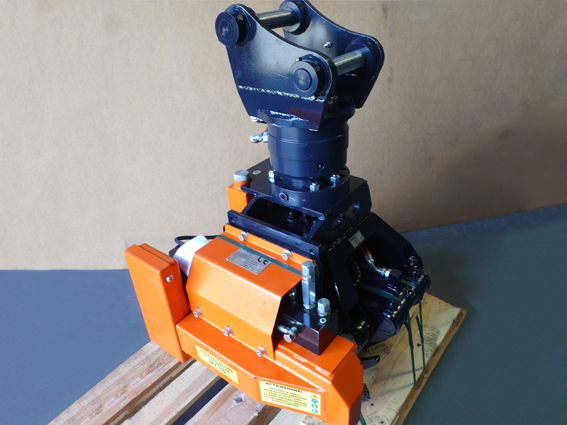

Extra hosing ports available to operate saw etc. Extra hosing ports available to operate saw etc. - models include Indexator GV124S - 6 port.
Designed to suit 20 tonne excavator pendulum mounted, maximum 8 tonne operating weight excavator rigid mount. Flange mount. Weight 98kg.
