TITAN 53/40 PREMIUM
Cutting & Splitting
TITAN 53/40 PREMIUM represents a generation of highly productive professional firewood processors. Higher productivity and easier work are ensured by the larger diameter of Widia saw, 400kN of splitting force and 2-4-8-18-part splitting knife.
- Cuts up to 53cm diameter logs
- Splitting force of 40 tonnes
Robust construction, longer lifespan and minimal maintenance of the new TITAN 53/40 PREMIUM origin in the concept of mechanical operation of the wood processing machine. Perfect for professional or semi-professional users enables high work productivity and safety. Despite the great capacity, its compact design allows simple transport by the tractor. This firewood processor is a complete solution for professional firewood producers who would like to increase their productivity. It is enriched by numerous patented innovations, fulfilling aspects of sustainability, user-friendliness, high productivity, and significant design lines.
- Hydraulically driven Widia circular saw for cutting logs with diameters up to 53cm
- Splitting force of 400kN (40t) for cutting hard wood
- BOOMSPEED function with two cylinders for shorter splitting cycle
- One hydraulically adjustable 2/4/8/18-way splitting knife
- Optional chassis (wheels, attachment with a brake, road lighting) for easier transport
- Integrated low platform for easier access to the control panel
- Built-in hydraulically foldable feed-in table with aggressive feed-in rollers

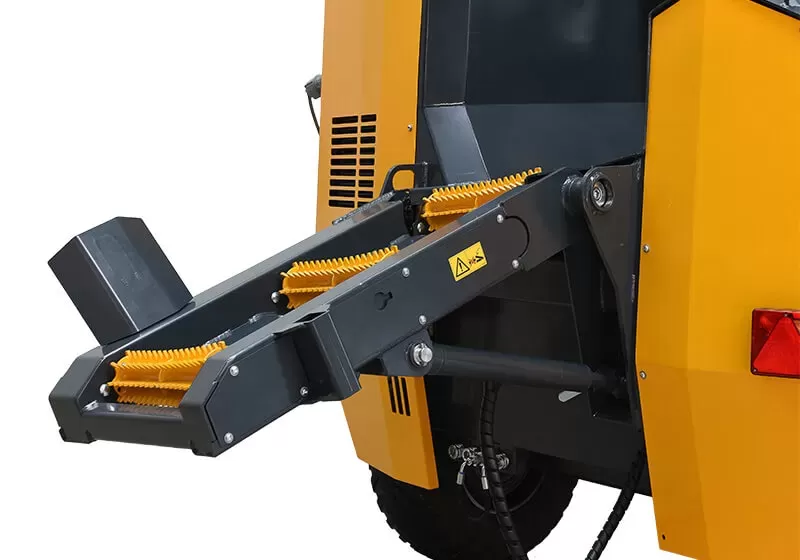

Built-in hydraulically adjustable feed-in table
Firstly, unfold the hydraulically adaptable table with aggressive feed-in rollers. Adjust the inclination to feed the unevenly shaped logs into the firewood processor more easily.

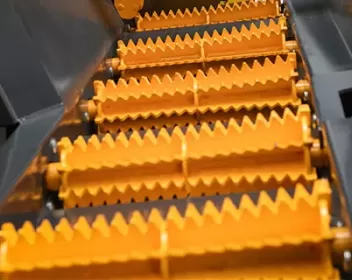

Driven in-feed rollers
The timber wood enters the machine with the help of transport rollers that enable an uninterrupted process even when operating with moisture.

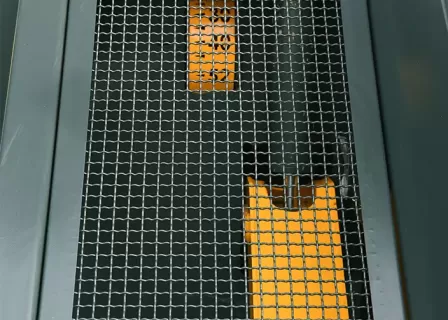

Log diameter indicator and stabilizer
Hydraulic clamp holds log during cutting and measures diameter of the log at the same time. Simply check the value and adjust the splitting knife height accordingly.

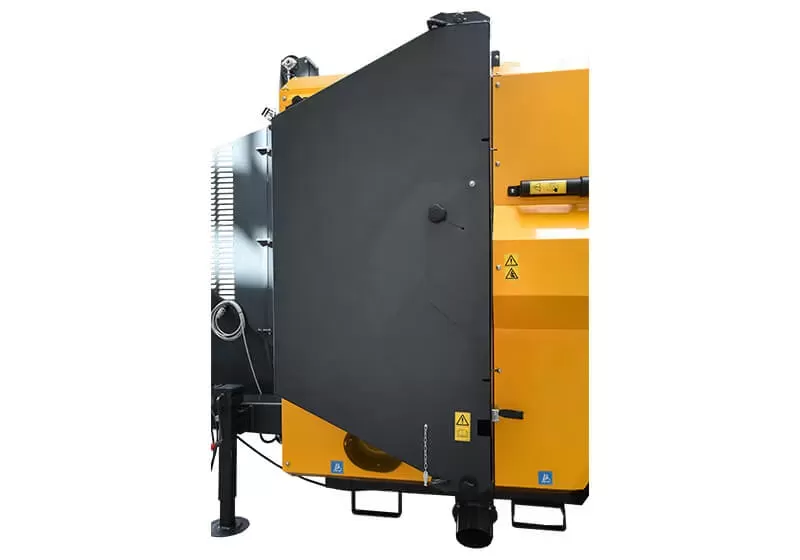

Foldable protective shield for circular saw - PATENT
Patented solution moves the circular saw into the cover and fold it to transport the firewood processor safely. To set the firewood processor from transport to working position, the patented protective shield is simply unfolded and moved backwards to enable the sawing function.

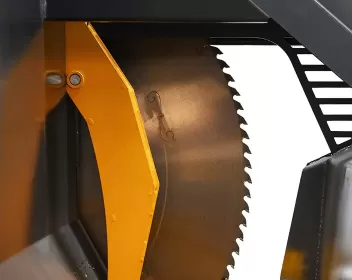

Cutting diameter up to 53cm
130cm wide Widia saw cuts logs with diameters up to 53cm.

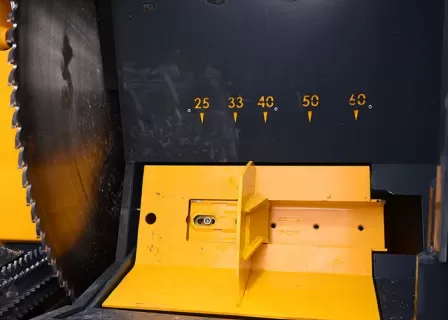

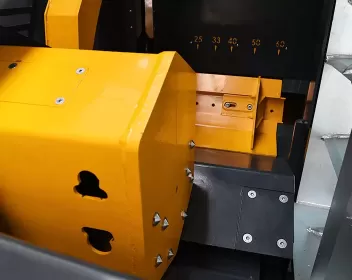

Adjustable log length and hydraulic feeder
Splitting length: 25, 33, 40, 50, 60cm.
Hydraulic feeder moves logs from cutting to splitting part. Log length guide automatic release.

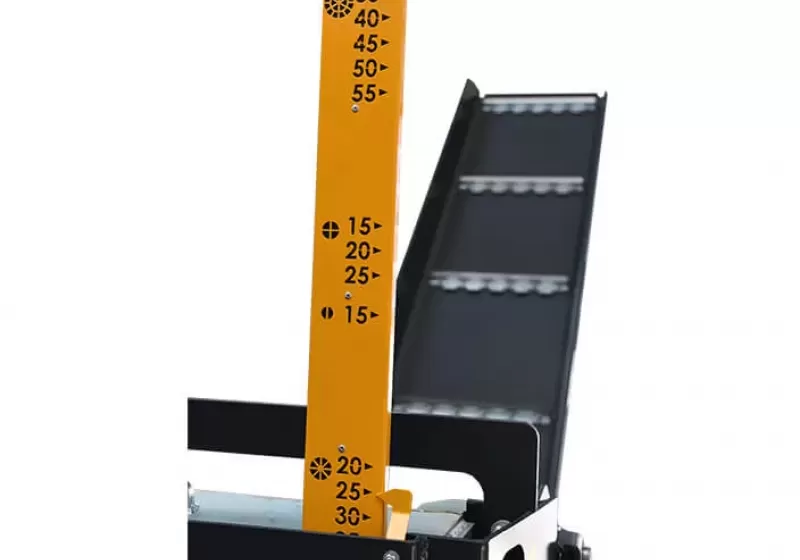

Splitting knife setting indicator
Value on the splitting knife scale helps you set the optimal number of splitting parts for the diameter of the processed log.
BoomSpeed as a standard equipment
Double-piston cylinders for two movement speeds: the working speed is utilised for normal splitting of resistant wood, but for less resistance or the "free run" of the cylinder, its speed is increased. This way the splitting cycle can be shortened for up to 40% which also contributes to higher efficiency.

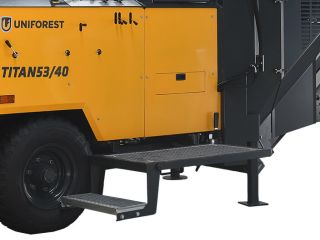

Low platform
Ergonomic operation of the firewood processor from the low platform with an additional step for easy access.

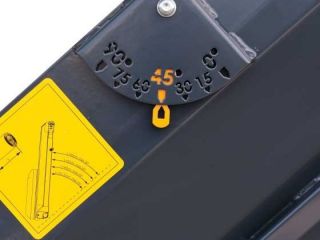

Conveyor belt
Telescopically extendable 5m long and 60cm wide conveyor belt with adjustable inclination and speed.

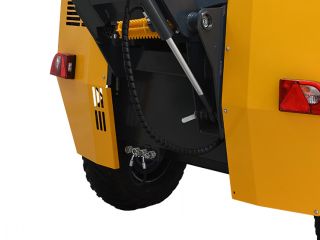

Road safety equipment
The package contains: LED lights on the removable holder, additional light holders for the machine in working position, side and front light reflectors and a safety triangle.

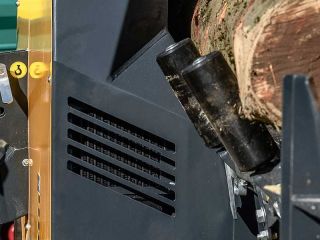

Oil cooler
Meant for persons who use the machine for longer periods of time with no breaks in-between. It prevents oil overheating.

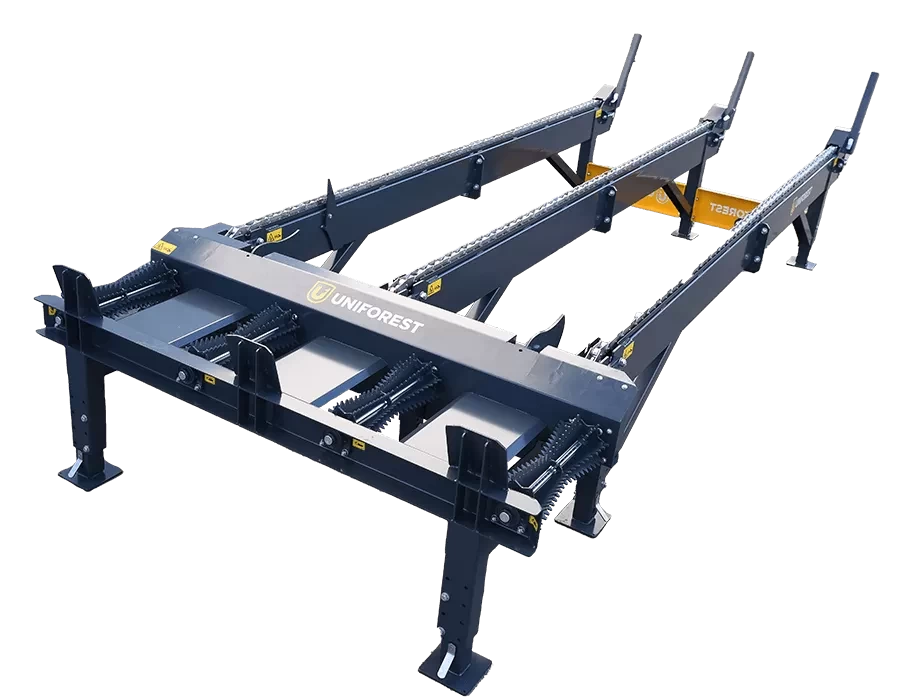

LOG DECKS
Log decks are available in two or four meter-long versions. Logs are loaded with a chain and spiked rollers – rolling instead of sliding logs.
Video Gallery
German Design Award Special 2023 for TITAN 53/40 PREMIUM
