TITAN 40/20

The firewood processor TITAN 40/20 premium is built for processing larger quantities of firewood is a compact, reliable and mobile solution. Logs with a diameter of ø 40 cm are cut with WIDIA - TCT saw blade and split. Splitting force is 20 t.

Titan 40/20

Environmentally friendly firewood processor TITAN 40/20 premium is cutting logs with WIDIA circular saw from cemented carbide resilient to foreign materials that cuts logs in the shortest time possible. Furthermore, it requires no lubrication with oil that could be dispersed in the environment. Because of completely mechanical operations, the firewood processor can also be used in more demanding conditions. The drive is possible via PTO, electric motor or a combination of both.


Common Features of TITAN firewood processors

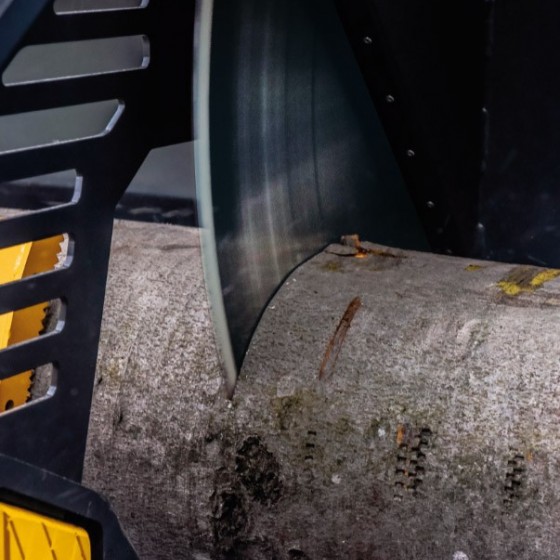

CARBIDE TIPPED CIRCULAR SAW

Thanks to its resilience to foreign materials in the wood and the shape of its teeth, the cemented carbide circular saw will cut through the log with an incredible speed. The movement of the circular saw, including the adjustment of the cutting speed, is hydraulically controlled.

ECO FRIENDLY

The circular saw requires no lubrication with oil which could be dispersed in the environment, so there is no risk of environmental pollution.

CARBIDE TIPPED CIRCULAR SAW

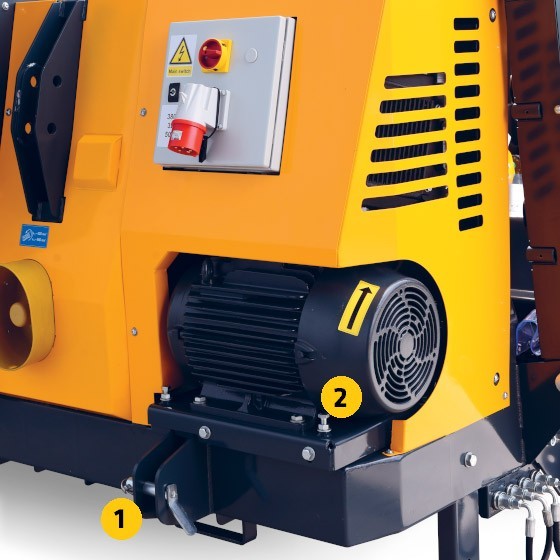

OPTIONAL IMPLEMENTATION

  1. Category II and III linkage.
  2. Electro drive (15 kW).
OPTIONAL IMPLEMENTATION

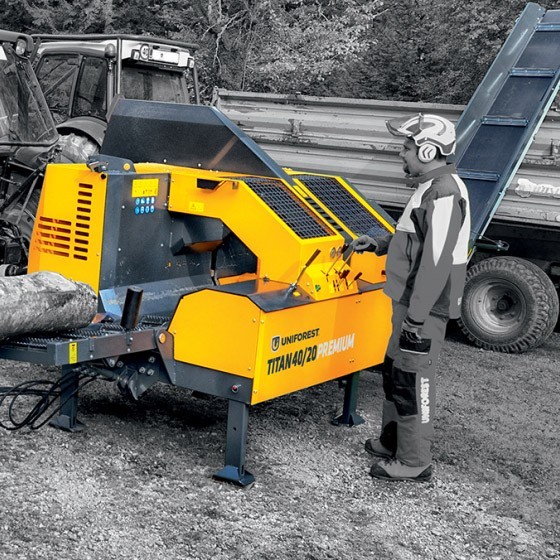

THE BASIC VERSION OF THE MACHINE

  1. drive through PTO (tractor drive)
  2. without chassis
THE BASIC VERSION OF THE MACHINE

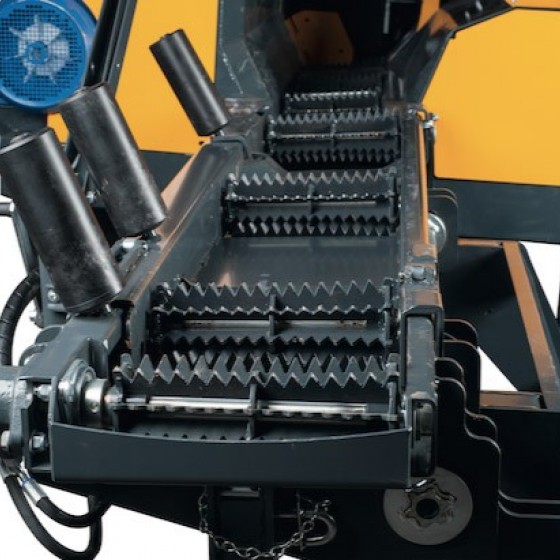

DRIVEN IN-FEED ROLLERS

DRIVEN IN-FEED ROLLERS

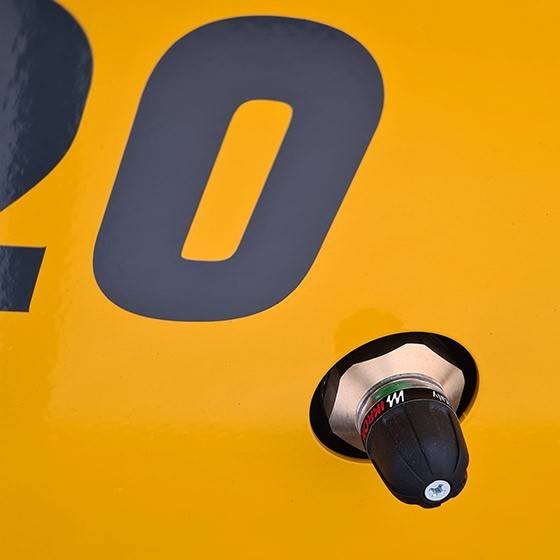

PRESSURE FILTER

A pressure filter with a clogging indicator prevents dirt from entering the control valve. The clogging indicator on the filter indicates whether it has a proper flow (colored green) or is clogged (colored red) and needs to be replaced.

PRESSURE FILTER

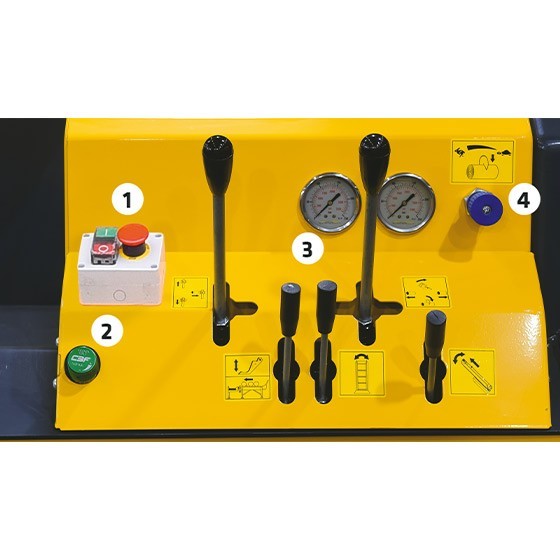

HYDRAULIC CONTROL

The hydraulic gauges show the system pressure of the auxiliary functions and the splitting pressure.

  1. On/off switch and emergency stop switch in case of electric motor operation.
  2. Conveyor belt speed control.
  3. Operation of hydraulic control levers.
  4. Splitting speed setting.

Due to these properties, the processor can be used even in more demanding conditions, and its maintenance is easy.

HYDRAULIC CONTROL

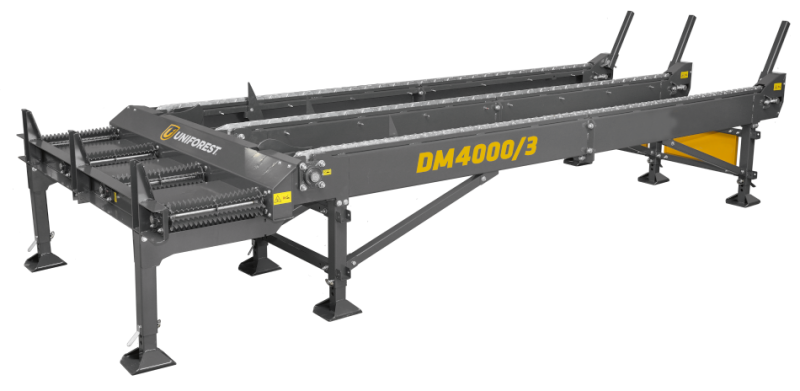

LOG DECK

Log decks are available in two or four meter-long versions. Logs are loaded with a chain and spiked rollers – rolling instead of sliding logs.

Log Deck

Video Gallery

Watch the video of Titan 40/20 premium

TITAN 40/20 premium with BOOMSPEED

Australian Manager, Cameron Moir, talking about importing Uniforest

Firewood processor 40/20 operating in Australia


Firewood Processors Catalogue

TITAN 40/20 PREMIUM

LOG DECK



Titan 40/20 Premium Gallery
